Fanless industrial tablet A model P12RW-G Intelligent Transportation System
Up to IP65 protection level. Can be paired with J1900/J6412/I5-4300U/I5-
Different from 6300U/I5-8260U/I5-1135G7/I7-195G7/I7-1255U
The operating platform meets different performance requirements.
Widescreen: 10.1/13.3/15.6/18.5/21./23.6 inches
Front screen: 12.1/15/17/19 inches

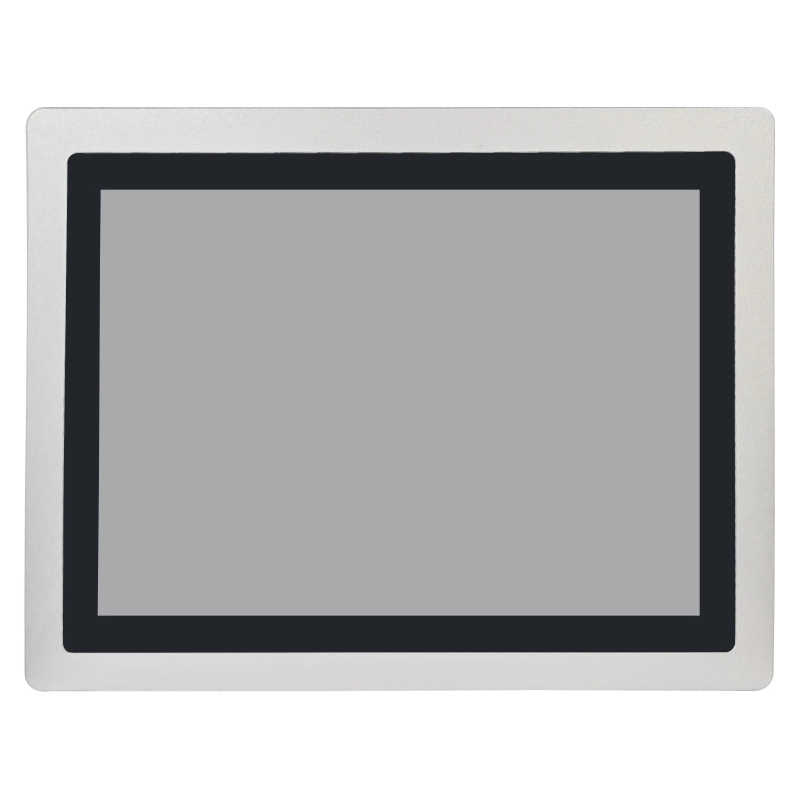

P12RW-G
Pure planar capacitive industrial touch screen
12.1-inch high brightness LED LCD display
Fully sealed dust and interference prevention, excellent heat dissipation performance, fanless design
7 * 24-hour continuous operation
Support WiFi, 4G, 5G and other extensions
Multiple installation methods including embedded, wall mounted, desktop, and VESA
product size
| Product model |
P12RW-G
|
|
LCD screen |
Screen type 12.1 inches Resolution 1024 × 768 Maximum color 16.7M Display area (W × H) 245.76 × 184.32 mm Backlight WLED Backlight MTBF (hour) 30K (Min.) hour Pixel distance (W × H) 0.240 × 0.240 mm Brightness 500 cd/m ² Contrast ratio 1200:1 Perspective (L/R/T/B) 86/86/86/86 |
|
Touch Screen |
Touch screen type: capacitive multi-point touch screen Transmittance ≥ 85% Controller USB interface Driver supports Win8.1/Win10 Response time (stylus) ≤ 16ms Surface hardness 6H Theoretically infinite touch life |
|
system configuration |
Processor board stickers J1900/J6412/I5-4300U/I5-6300U/I5-8260U/I5-1135G7/I7-195G7/I7-1255U Chipset onboard SoC integration DDR3L/DDR4L SO-DIMM memory slot Storage of SATA/MSATA/M.2 WIFI can support MINI PCIE or M.2 WIFI modules (depending on the motherboard selection) 4G/5G can support MINI PCIE or M.2 4G/5G modules (depending on the motherboard selection) |
|
I/O interface |
1 x DCIN，5.5/2.5mm，12V 2 x RJ45瑞昱8111H/英特尔I225V/英特尔I226V/英特尔I111AT/英特尔I210AT 1 x HDMI 1 x VGA 4个USB2.0/2个USB3.0 1 x线路输出 4 x COM |
| Front panel of shell | aluminum magnesium alloy, anodized coating; All aluminum body and integrated design |
| Waterproof |
front panel reaches IP65 protection level |
| Installation methods |
include embedded, wall mounted, desktop VESA |
| Shell |
tolerance ± 0.5mm |
| International tolerance |
IT12 |
| Weight |
* |
| Operating system |
Win7/Win10/Linux, 64 bit
|
| Hole size(W × H) |
302mm×235mm
|
| Dimensions (W × D × H) |
317mm×84mm×258mm
|
| Working environment |
temperature/humidity requirements: 0-50 ℃, 10% -90% non condensing |
order information
| P12RW-G-01 | 12.1-inch fanless tablet / J1900 / 4GB / 128GB / 6 USB ports / 4 serial ports / 2 LAN ports 8111H / DC12V 5A power adapter |
| P12RW-G-02 | 12.1-inch fanless tablet /J6412/8G/128G/6USB/4 serial ports /2 LAN 8111H/DC12V 5A power adapter |
| P12RW-G-03 | 12.1-inch fanless tablet / I5-4300U / 8G / 128G / 6USB / 4 serial ports / 2 LAN 8111H / DC12V 5A power adapter |
| P12RW-G-04 | 12.1-inch fanless tablet / I5-6300U / 8G / 128G / 6USB / 4 serial ports / 2LAN I210AT / DC12V 5A power adapter |
| P12RW-G-05 | 12.1-inch fanless tablet / I5-8260U / 8G / 128G / 6USB / 4 serial ports / 2 LAN ports I226V / DC12V 7A power adapter |
| P12RW-G-06 | 12.1-inch fanless tablet / I5-1135G7 / 8GB / 128GB / 6 USB ports / 4 serial ports / 2 LAN ports I210AT / DC12V 7A power adapter |
| P12RW-G-07 | 12.1-inch fanless tablet / I7-1195G7 / 8G / 128G / 6USB / 4 serial ports / 2LAN I226V / DC12V 7A power adapter |
| P12RW-G-08 | 12.1-inch fanless tablet / I7-1255U / 8G / 128G / 6USB / 4 serial ports / 2 LAN ports I226V / DC12V 7A power adapter |
