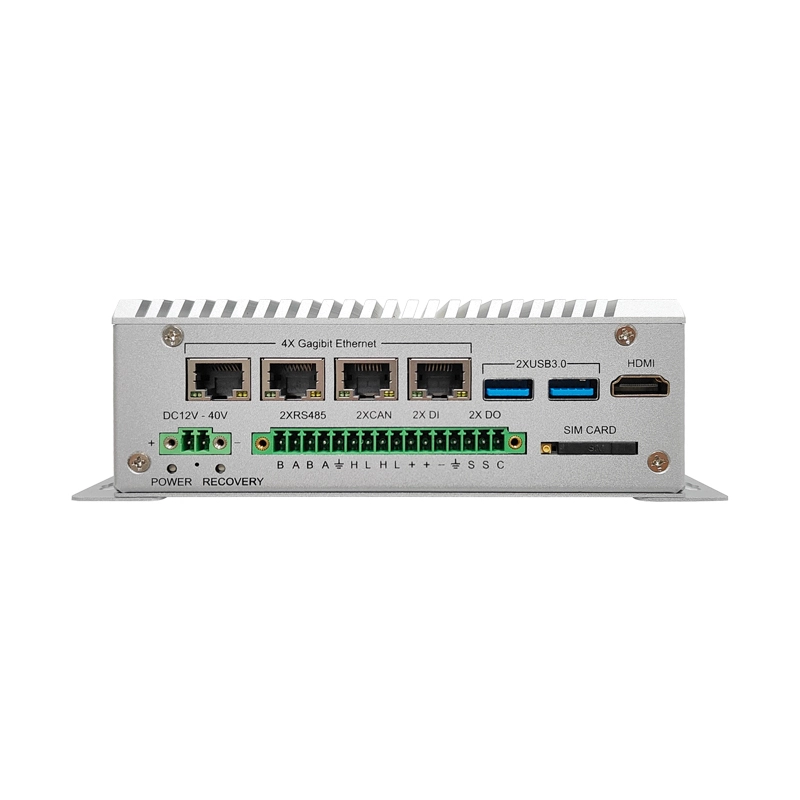

ARM Fanless BOX A30 with 4 GbE, HDMI 2.1, 4 RS485, 12-45V Wide Voltage

Project

Description

Form

2U edge computing application server

Adapter board

Supports optional single and dual CPU chassis base plates (actual customer selection is subject to)

IO joggle

The standard supports 2 USB3.0 ports and 1 optional front VGA port; other ports are subject to the matching board

Case status light

1 One network status light, one hard disk status light, and one power status light

Memorizer

Supports a variety of hard disk configurations and hot plug-in: 62.5-inch hard disks (SAS/SATA  ports,  total  hard  disk  number < =  6)

can  be  configured;  according  to customer selected chassis, 1-2 NVME M. 2 SSD specifications can be supported

Expansion slot

7-bit  half-height  (2U  specification)  expansion  slots  can  be  configured  (actually available mainly on the base plate)

Case fan

Small 4P 12V 1. 7A frame line length 300MM (including terminals) 4PIN line color in sequence is black, red, yellow and blue 2510 terminals (3+1) RPM 8500RPM

Operating system

Microsoft Windows Server、VMware ESXi Red Hat Enterprise Linux、CentOS、Ubuntu、Debian、openEuler

Working Temperature

0℃ ~ +50℃; 5% ~ 90% (non-condensing state)

Storage Environment

-20℃ ~ +60℃; 5% ~ 90% (non-condensing state)

Power Supply

Two CRPS redundant hot-swappable power supplies can be configured, supporting 1 +1 redundancy (optional platinum / titanium power supply)

Outline Dimension

437×88×430mm(W*H*D)

Model

Description

SE-U2106A-I2V1/ SMO-X11DPL

SE-U2106A-I2V1  2U  server  /  SMO-X11DPL  supports  up  to  2  second-generation scalable Xeon processors (140W) / up to 2TB DDR4-2933MT/s

3DS ECC LRDIMM or 3DS  ECC  RDI MM memory / optional  1  PCIe 3.0 x4  M-Key  M. 2 SSD /  1 +1 dual- redundant power supply (standard 550W,

optional: 800W/1200W/2000W) / external IO ports: 2 USB3.0 ports at the front / 2 USB2.0 ports / 1 VGA port / 2 RJ45 network ports / 1 IPMI port /

6 expansion slots / 62.5-inch hard drives (SAS/SATA; RAID-0/1/ 5/10)

SE-U2106A-I2V1-1/ SME-X12DPI

IPC-6021R-430  2U  server  /  SME-X12DPI  supports   2  lanes  of  third-generation scalable Xeon processors (270W) / up to 4TB DDR4-3200MT/s 3DS

ECC LRDIMM or 3DS  ECC RDI MM  memory / optional  1  lane  2280,22110  PCIe 4.0 x4  M-Key  M.  2 SSD / 1 +1 dual redundant power supply

(standard 550W, optional: 800W/1200W/ 2000W) / external IO ports: 6 front USB3.0 ports / 1 VGA port / 2 RJ45 network ports / 1 IPMI port /

6 expansion slots / 62.5-inch hard drives (SAS/SATA; RAID-0/1/ 5/10)

SE-U2106A/SMO-H13SSL

IPC-6021R-430  2U  server  /  SMO-H13SSL  /  supports   1  channel  of  the  fourth- generation AMD EPYC (Xeon) embedded 9004 series processor (400W) /

supports up to 3TB 3DS ECC RDI MM DDR5-4800MHz memory / 1 +1 dual redundant power supply (standard 800W, optional: 1200W/2000W) /

external IO ports: 6 front USB3.0 ports / 1 VGA port / 2 RJ45 network and IPMI interfaces, shared ports / 6 expansion slots /

62.5-inch hard drives (SAS/SATA; RAID-0/1/5/10)
