Application of Xiyang IPC-630F Industrial Control Computer in Expressway Weight Toll System
System Overview:
With the rapid development of my country's economy, highway construction has become one of the hottest projects in my country. The toll collection system, one of the four major mechanical and electrical projects, is currently the core part of domestic highway mechanical and electrical engineering applications, and is also the most effective and most mature system. In order to cooperate with the implementation of the "Regulations on the Management of Over-limit Transport Vehicles on Highways", effectively alleviate the road losses caused by over-limit transportation of vehicles, and strengthen the scientific nature of highway maintenance and management, according to the Ministry of Transport's vehicle axle type and axle load quality The company has developed a dynamic highway vehicle weighing toll system with independent intellectual property rights. The system can be used for dynamic axle weighing and vehicle weighing, and is suitable for highway over-limit control and weight toll. It can also be used in other places where dynamic axle weight weighing and vehicle weighing are required.
System Requirements:
Because the expressway toll system needs to be in the wild high temperature/low temperature, humidity, electromagnetic, dust, vibration and other complex environmental conditions, uninterrupted, long-term stable operation, at the same time the system MTBF>30000 hours, the system MTTR<1 hour. If you want to ensure that the charging system actually performs its own charging and monitoring functions, you can only use an industrial computer for system control. Choose industrial chassis with stronger moisture-proof, dust-proof, and anti-electromagnetic capabilities, choose industrial motherboards that last longer and adapt to larger temperature ranges and vibration requirements, and choose industrial-grade control cards and management modules. The products produced by Xiyang Industrial Control, which has been committed to research and manufacturing in the industrial control industry, can meet its requirements.
System Components:

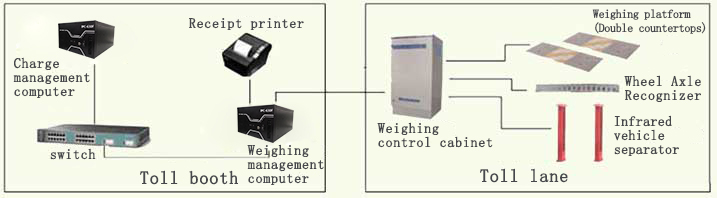

The highway vehicle weighing toll system is composed of dynamic weighing instruments, vehicle separators, wheel axle recognizers, weighing controllers, and weighing management computer systems (see the figure below)

l Dynamic weighing instrument-used to measure the dynamic weight of each axle of the vehicle
l Vehicle separator-The vehicle separator is mainly used to provide the vehicle entering and leaving signals for the checkweighing system to complete the separation of the vehicle. The effective detection height is 0.5～1.7m.
l Axle Recognizer-The Axle Recognizer is composed of a wheel axle detector and its controller, which is used to identify the type of axle of the passing vehicle.
l Weighing control cabinet-The weighing control cabinet is equipped with weighing controller, power supply, signal controller, control circuit of wheel axle identifier, protection circuit and other units. The cabinet adopts IP65 protection grade.
l Weighing management computer system—The weighing management computer system is the operating platform of this system. The system realizes seamless interconnection with the charging system through a network database.
The system configuration of IPC-630F weighing toll computer is as follows:
1. Compact wall-mounted industrial computer
2. Provide one 2.5-inch and one 3.5-inch drive position;
3. Cooling system, with a double ball cooling fan at the front,
4. Power supply: 300W industrial power supply
5. Adopt industrial domestic Zhaoxin motherboard EC9-1501-ZX-C4580
EC9-1501-ZX-C4580:
Using the domestic chipset ZX-100S chipset, it provides users with a high-performance, high-security, and high-stability industrial computer platform. The motherboard is equipped with Megacore Kaixian series quad-core processor, clocked at 1.83G, and low power consumption. In terms of system memory, two 1333/1600MHz DDR3 memory slots are provided, which support a single memory with a maximum capacity of 16GB and a total of 32GB. Provides 6 USB2.0 ports, 3 USB3.0 ports, and 10 COM ports. COM2 supports RS232/RS422/RS485, and the others are RS232. 1 8 GPIO, 1 LPT, and 1 TCM interface. Operating system support: WIN7\WIN8\WIN10\Linux and domestic bidding Kylin and other operating systems.
